Trying to revive 'ubtd' (Bluetooth file transfer)

PhAndersson

@gpatel-fr said in Trying to revive 'ubtd' (Bluetooth file transfer):

@PhAndersson said in Trying to revive 'ubtd' (Bluetooth file transfer):
yeah, that's a 24.04 thing. Before Ubuntu was putting the executable under /usr/lib.

I have filed an issue on gitlab.

Splendid! Many thanks.

PhAndersson

@gpatel-fr said in Trying to revive 'ubtd' (Bluetooth file transfer):
EDIT: after some searching, and finding this github issue, I found the trick to add another override and after setting enable-linger for phablet with loginctl, the obex service is running after a restart.

I just tried the enable-linger trick on 20.04:

$ loginctl enable-linger

then confirmed that it was set using

$ loginctl user-status

but after power-cycling the phone, the OBEX daemon still won't start automatically even though its unit file is still enabled.

You mentioned "another override": was there something else to do?

gpatel-fr

@PhAndersson

the other override is needed because of the specific 24.04 problem, you should not need it.

Maybe all that is needed is to enable again the service.

What's the result of

systemctl --user status obex

also, is there a symbolic link to the service under ~/.config/systemd/user/default.target.wants ?
if not systemd will not start it.

PhAndersson

@gpatel-fr said in Trying to revive 'ubtd' (Bluetooth file transfer):

@PhAndersson

the other override is needed because of the specific 24.04 problem, you should not need it.

OK -- thanks.

Maybe all that is needed is to enable again the service.

What's the result of

systemctl --user status obex

obex.service is still enabled -- here is the requested output:

â obex.service - Bluetooth OBEX service
     Loaded: loaded (/usr/lib/systemd/user/obex.service; enabled; vendor preset: enabled)
    Drop-In: /usr/lib/systemd/user/obex.service.d
             ââubuntu-touch-session.conf
     Active: inactive (dead)

also, is there a symbolic link to the service under ~/.config/systemd/user/default.target.wants ?
if not systemd will not start it.

Well -- that's a good hint

As it turns out, the folder called ~/.config/systemd/user/default.target.wants does not exist at all. There is a folder called graphical-session.target.wants but the symlink is not there either. The symlink is created one level above, i.e. in ~/.config/systemd/user/. Here is the ls -l output:

total 20
lrwxrwxrwx 1 phablet phablet   34 Jan 15 10:50 dbus-org.bluez.obex.service -> /usr/lib/systemd/user/obex.service
-rw-rw-r-- 1 phablet phablet  768 Oct  4 16:55 dekkod-notify.service
-rw-rw-r-- 1 phablet phablet  716 Oct  4 16:55 dekkod.service
drwxr-xr-x 2 phablet phablet 4096 Mar 27  2025 graphical-session.target.wants
-rw-rw-r-- 1 phablet phablet  332 Mar 27  2025 osmscout-server.service
-rw-rw-r-- 1 phablet phablet  174 Mar 27  2025 osmscout-server.socket

By way of comparison, on my laptop running openSUSE Leap 15.6, the OBEX symlink is created in the exact same place (and obexd successfully starts when I log in), so I don't know whether or not it's enough to explain why the service fails to start on the phone.

This being said, my app is now able to start obexd by itself if not running already, so that aspect has become less critical.

gpatel-fr

@PhAndersson said in Trying to revive 'ubtd' (Bluetooth file transfer):

lrwxrwxrwx 1 phablet phablet 34 Jan 15 10:50 dbus-org.bluez.obex.service -

I have it too; it's a different thing, it's for the dbus part I think.

@PhAndersson said in Trying to revive 'ubtd' (Bluetooth file transfer):

my app is now able to start obexd by itself if not running already,

It may be possible to activate on demand, but I have no idea how.

PhAndersson

OK, yet more updates.

As already indicated above, my app now successfully registers with D-Bus/OBEX:

[20/01/2026 13:50] Creating a QMirClientScreen now
[20/01/2026 13:50] reply QDBusMessage(type=MethodReturn, service=":1.28", signature="", contents=([]) )
[20/01/2026 13:50] creating agent on dbus
[20/01/2026 13:50] registering agent
[20/01/2026 13:50] discovering obex service
[20/01/2026 13:50] OBEX service not found, attempting D-Bus activation
[20/01/2026 13:50] OBEX service activated successfully
[20/01/2026 13:50] found OBEX service at: "org.bluez.obex"
[20/01/2026 13:50] registering agent on obexd-server
[20/01/2026 13:50] Agent registered successfully
[20/01/2026 13:50] have entries: (".", "..", "HubIncoming", "qmlcache", "qtshadercache-arm64-little_endian-lp64") "/home/phablet/.cache/ratatoskr.philipa"
[20/01/2026 13:50] file:///usr/lib/aarch64-linux-gnu/qt5/qml/Lomiri/Components/1.3/Icon.qml:115:5: QML Image: Failed to get image from provider: image://theme/network-cellular-connected
[20/01/2026 13:50] QObject::startTimer: Timers cannot be started from another thread
[20/01/2026 13:52] file:///usr/lib/aarch64-linux-gnu/qt5/qml/Lomiri/Components/1.3/Icon.qml:115:5: QML Image: Failed to get image from provider: image://theme/network-cellular-connected
[20/01/2026 13:52] file:///usr/lib/aarch64-linux-gnu/qt5/qml/Lomiri/Components/1.3/Icon.qml:115:5: QML Image: Failed to get image from provider: image://theme/network-cellular-connected
[20/01/2026 13:52] qt.qpa.mirclient: Attempted to deliver an event to a non-existent window, ignoring.

But when I start the app and try to push a file from the laptop to the phone over BT, obexd logs the following:

[20/01/2026 13:50] OBEX daemon 5.64
[20/01/2026 13:50] Excluding pcsuite
[20/01/2026 13:50] Excluding ftp
[20/01/2026 13:50] Excluding irmc
[20/01/2026 13:50] Excluding mas
[20/01/2026 13:51] CONNECT(0x0), <unknown>(0xff)
[20/01/2026 13:51] CONNECT(0x0), <unknown>(0x0)
[20/01/2026 13:51] PUT(0x2), <unknown>(0xff)
[20/01/2026 13:51] Agent replied with an error: org.freedesktop.DBus.Error.AccessDenied, An AppArmor policy prevents this sender from sending this message to this recipient; type="method_call", sender=":1.107" (uid=32011 pid=4463 comm="/usr/lib/bluetooth/obexd -P ftp,irmc,mas,pcsuite -" label="unconfined") interface="org.bluez.obex.Agent1" member="AuthorizePush" error name="(unset)" requested_reply="0" destination=":1.106" (uid=32011 pid=4460 comm="ratatoskr " label="ratatoskr.philipa_ratatoskr_260120124119 (enforce)")
[20/01/2026 13:51] PUT(0x2), Forbidden(0x43)
[20/01/2026 13:51] DISCONNECT(0x1), <unknown>(0xff)
[20/01/2026 13:51] DISCONNECT(0x1), Success(0x20)
[20/01/2026 13:51] disconnected: Transport got disconnected

Looking in journal, another message is found right before the error reported by obexd, this one issued by dbus-daemon (here copied from an earlier test run):

Jan 15 16:44:14 hatshepsut dbus-daemon[2372]: apparmor="DENIED" operation="dbus_method_call"  bus="session" path="/test/agent" interface="org.bluez.obex.Agent1" member="AuthorizePush" name=":1.94" mask="receive" pid=5216 label="ratatoskr.philipa_ratatoskr_260115153557" peer_pid=3539 peer_label="unconfined"

Clearly, the IPC between obexd and the agent registered by my app seems to be blocked by AppArmor. This is the current AA profile for my app:

{
    "policy_groups": [
        "bluetooth",
        "networking",
        "content_exchange",
        "content_exchange_source"
    ],
    "policy_version": 20.04
}

Can anyone tell me what could be missing?

gpatel-fr

@PhAndersson said in Trying to revive 'ubtd' (Bluetooth file transfer):

AuthorizePush

this is denied; I never dabbled much with Apparmor, and certainly not with UT; I notice with some dismay that there are no apparmor logs and I have no clear idea on the better way to enable them unfortunately.

For now, I have only one positive thing to say: in the application that worked with 16.04, the template was set to 'unconfined'; while this is not generally a great idea, to advance your testing maybe it could be worth a try to add it to the apparmor profile ?

PhAndersson

@gpatel-fr said in Trying to revive 'ubtd' (Bluetooth file transfer):

For now, I have only one positive thing to say: in the application that worked with 16.04, the template was set to 'unconfined'; while this is not generally a great idea, to advance your testing maybe it could be worth a try to add it to the apparmor profile ?

Yes, you're right -- it's certainly worth a try.

PhAndersson

Well, good news! With the "unconfined" AA profile, the app works

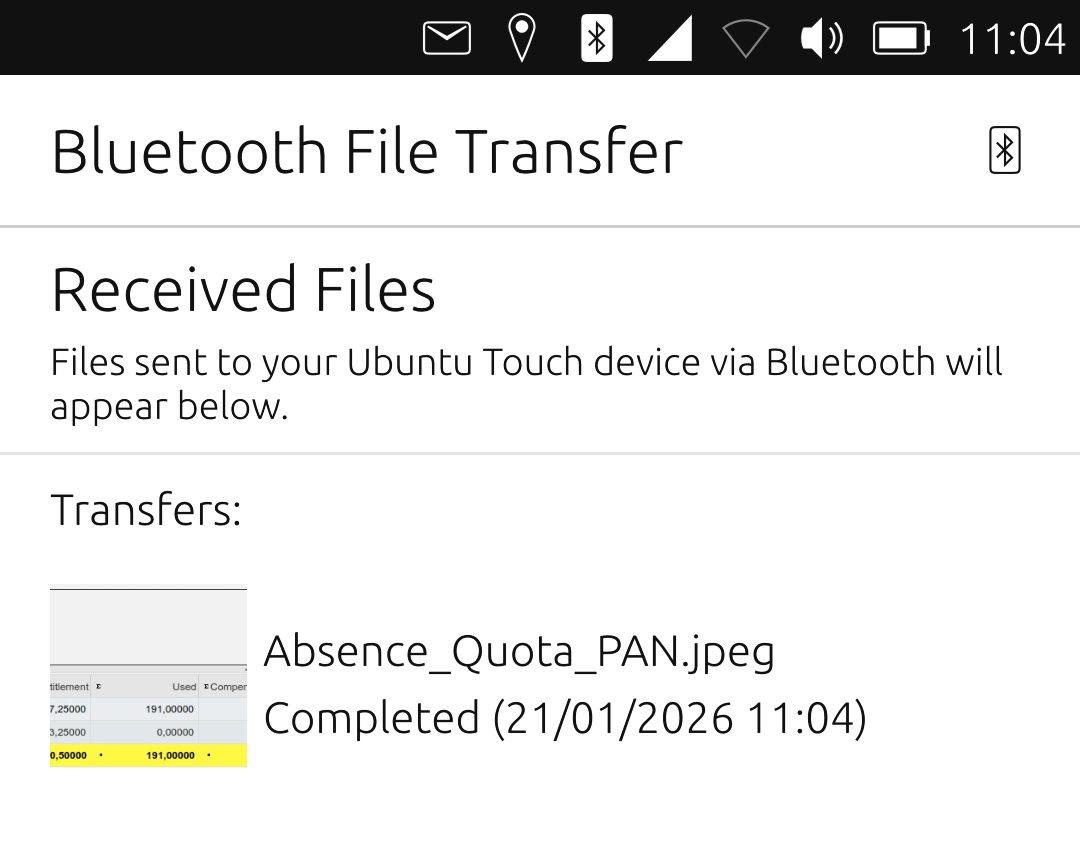

The phone successfully received a .jpeg file sent over BT from my laptop:

gpatel-fr

@PhAndersson

Great ! have happy file exchanges with your car
